EmbodiedGen: Towards a Generative 3D World Engine for Embodied Intelligence

EmbodiedGen is a generative engine to create diverse and interactive 3D worlds composed of high-quality 3D assets(mesh & 3DGS) with plausible physics, leveraging generative AI to address the challenges of generalization in embodied intelligence related research. It composed of six key modules: Image-to-3D, Text-to-3D, Texture Generation, Articulated Object Generation, Scene Generation and Layout Generation.

---

✨ Table of Contents of EmbodiedGen

• 🖼️ Image-to-3D
• 📝 Text-to-3D
• 🎨 Texture Generation
• 🌍 3D Scene Generation
• ⚙️ Articulated Object Generation
• 🏞️ Layout (Interactive 3D Worlds) Generation

🚀 Quick Start

✅ Setup Environment

git clone https://github.com/HorizonRobotics/EmbodiedGen.git
cd EmbodiedGen
git checkout v0.1.1
git submodule update --init --recursive --progress
conda create -n embodiedgen python=3.10.13 -y
conda activate embodiedgen
bash install.sh

✅ Setup GPT Agent

Update the API key in file: embodied_gen/utils/gpt_config.yaml.

You can choose between two backends for the GPT agent:

• gpt-4o (Recommended) – Use this if you have access to Azure OpenAI.
• qwen2.5-vl – An alternative with free usage via OpenRouter, apply a free key here and update api_key in embodied_gen/utils/gpt_config.yaml (50 free requests per day)

---

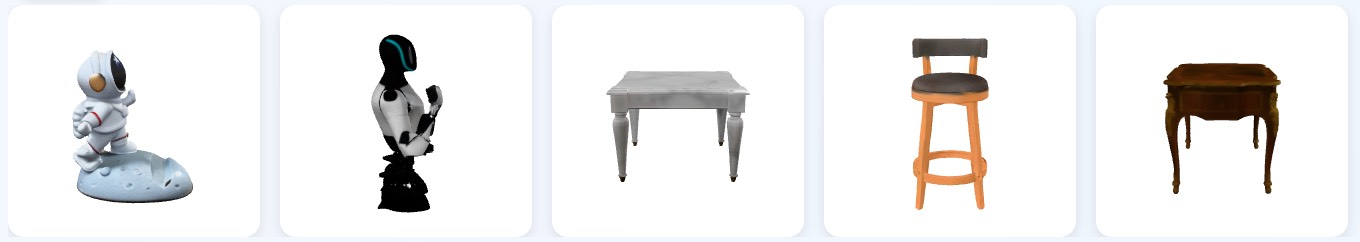

🖼️ Image-to-3D

Generate physically plausible 3D asset URDF from single input image, offering high-quality support for digital twin systems.

☁️ Service

Run the image-to-3D generation service locally. Models downloaded automatically on first run, please be patient.

# Run in foreground
python apps/image_to_3d.py
# Or run in the background
CUDA_VISIBLE_DEVICES=0 nohup python apps/image_to_3d.py > /dev/null 2>&1 &

⚡ API

Generate physically plausible 3D assets from image input via the command-line API.

img3d-cli --image_path apps/assets/example_image/sample_04.jpg apps/assets/example_image/sample_19.jpg \
    --n_retry 2 --output_root outputs/imageto3d

# See result(.urdf/mesh.obj/mesh.glb/gs.ply) in ${output_root}/sample_xx/result

---

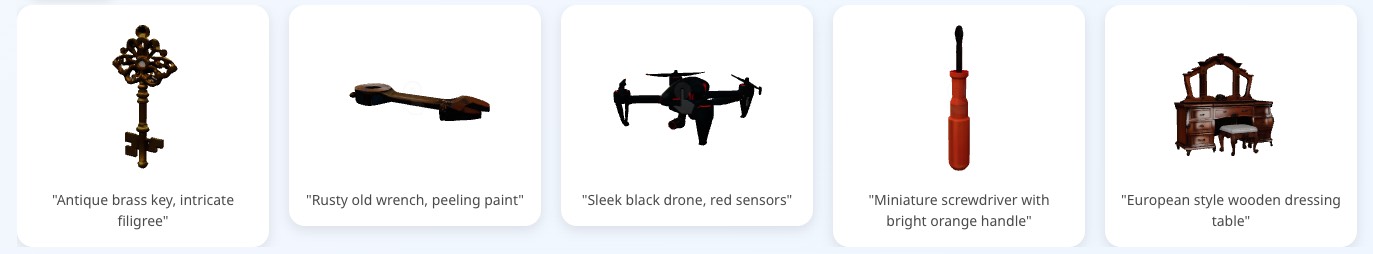

📝 Text-to-3D

Create 3D assets from text descriptions for a wide range of geometry and styles.

☁️ Service

Deploy the text-to-3D generation service locally.

Text-to-image model based on the Kolors model, supporting Chinese and English prompts. Models downloaded automatically on first run, please be patient.

python apps/text_to_3d.py

⚡ API

Text-to-image model based on SD3.5 Medium, English prompts only. Usage requires agreement to the model license(click accept), models downloaded automatically. (ps: models with more permissive licenses found in embodied_gen/models/image_comm_model.py)

For large-scale 3D assets generation, set --n_pipe_retry=2 to ensure high end-to-end 3D asset usability through automatic quality check and retries. For more diverse results, do not set --seed_img.

text3d-cli --prompts "small bronze figurine of a lion" "A globe with wooden base" "wooden table with embroidery" \
    --n_image_retry 2 --n_asset_retry 2 --n_pipe_retry 1 --seed_img 0 \
    --output_root outputs/textto3d

Text-to-image model based on the Kolors model.

bash embodied_gen/scripts/textto3d.sh \
    --prompts "small bronze figurine of a lion" "A globe with wooden base and latitude and longitude lines" "橙色电动手钻，有磨损细节" \
    --output_root outputs/textto3d_k

---

🎨 Texture Generation

Generate visually rich textures for 3D mesh.

☁️ Service

Run the texture generation service locally. Models downloaded automatically on first run, see download_kolors_weights, geo_cond_mv.

python apps/texture_edit.py

⚡ API

Support Chinese and English prompts.

bash embodied_gen/scripts/texture_gen.sh \
    --mesh_path "apps/assets/example_texture/meshes/robot_text.obj" \
    --prompt "举着牌子的写实风格机器人，大眼睛，牌子上写着“Hello”的文字" \
    --output_root "outputs/texture_gen/robot_text"

bash embodied_gen/scripts/texture_gen.sh \
    --mesh_path "apps/assets/example_texture/meshes/horse.obj" \
    --prompt "A gray horse head with flying mane and brown eyes" \
    --output_root "outputs/texture_gen/gray_horse"

---

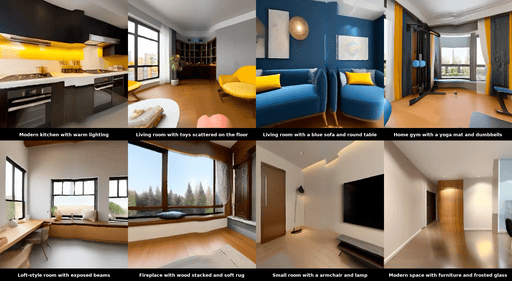

🌍 3D Scene Generation

🚧 Coming Soon

---

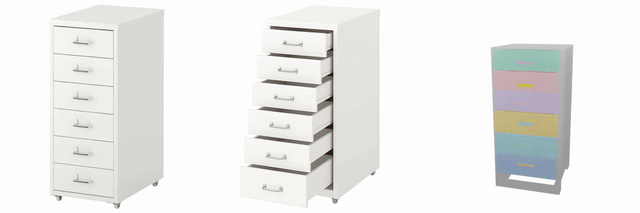

⚙️ Articulated Object Generation

🚧 Coming Soon

---

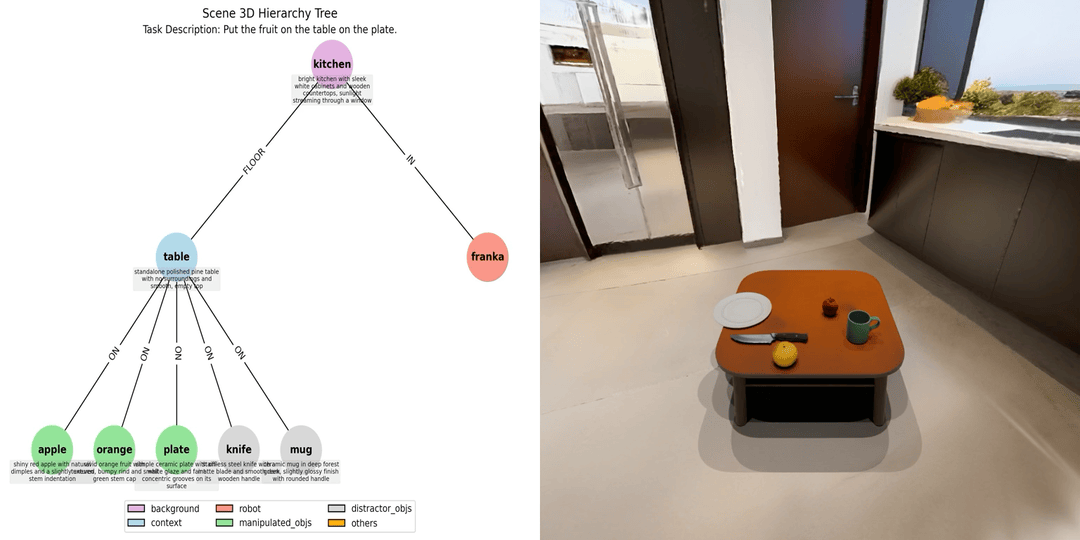

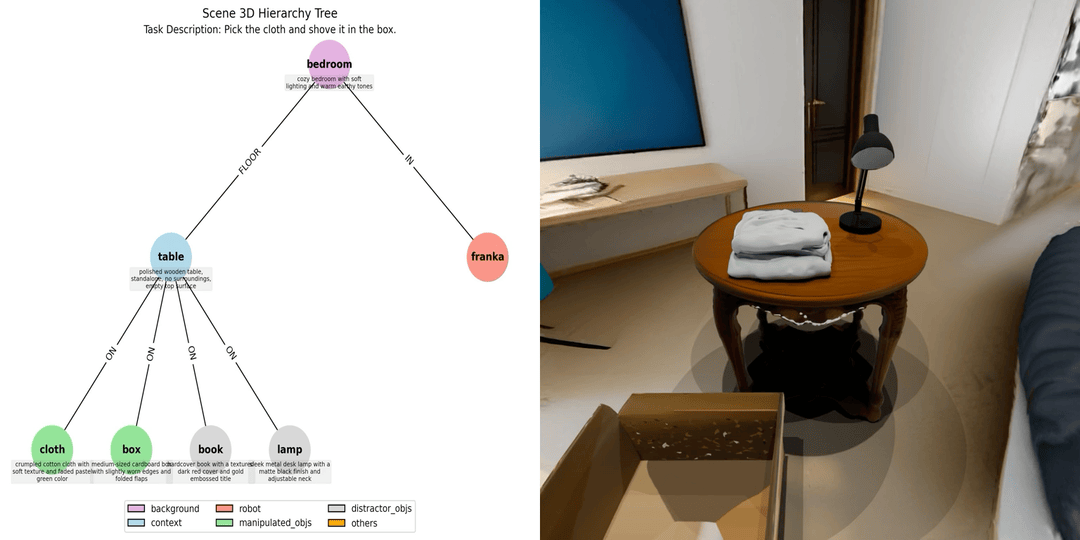

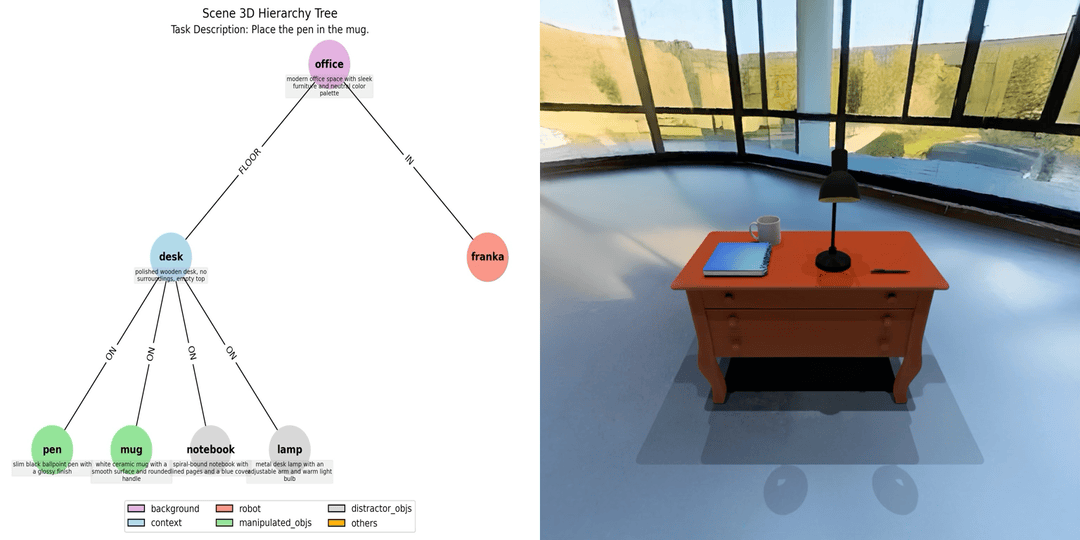

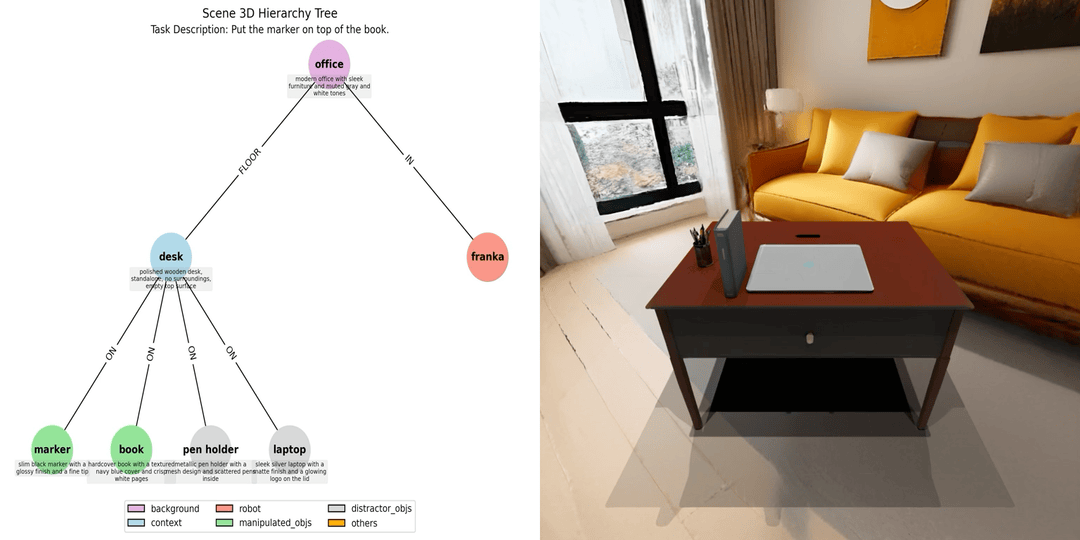

🏞️ Layout(Interactive 3D Worlds) Generation

💬 Generate Layout from task description

🚧 Coming Soon

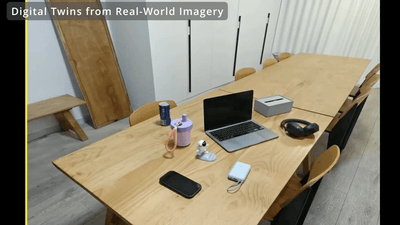

🖼️ Real-to-Sim Digital Twin

---

For Developer

pip install .[dev] && pre-commit install
python -m pytest # Pass all unit-test are required.

📚 Citation

If you use EmbodiedGen in your research or projects, please cite:

@misc{wang2025embodiedgengenerative3dworld,
      title={EmbodiedGen: Towards a Generative 3D World Engine for Embodied Intelligence},
      author={Xinjie Wang and Liu Liu and Yu Cao and Ruiqi Wu and Wenkang Qin and Dehui Wang and Wei Sui and Zhizhong Su},
      year={2025},
      eprint={2506.10600},
      archivePrefix={arXiv},
      primaryClass={cs.RO},
      url={https://arxiv.org/abs/2506.10600},
}

---

🙌 Acknowledgement

EmbodiedGen builds upon the following amazing projects and models: 🌟 Trellis | 🌟 Hunyuan-Delight | 🌟 Segment Anything | 🌟 Rembg | 🌟 RMBG-1.4 | 🌟 Stable Diffusion x4 | 🌟 Real-ESRGAN | 🌟 Kolors | 🌟 ChatGLM3 | 🌟 Aesthetic Score | 🌟 Pano2Room | 🌟 Diffusion360 | 🌟 Kaolin | 🌟 diffusers | 🌟 gsplat | 🌟 QWEN-2.5VL | 🌟 GPT4o | 🌟 SD3.5

---

⚖️ License

This project is licensed under the Apache License 2.0. See the LICENSE file for details.
